- Custom Sizes & Other Aluminum Colors Available
- Garage Doors are delivered complete including tracks, springs & hardware
- Lead Time: Please Call.
- $895.00 Flat Rate Shipping to any residential or commercial address nationwide
* $125 for each additional door
* Shipments to Alaska and Hawaii, please contact us for a quote

Through a two-step powder coating process, C.H.I. is excited to announce the addition of four woodgrain options to our Aluminum Full-View product line. Available for both residential and commercial applications, these wood tones bring a natural feel to the modern lines of a Full-View door. The perfect choice to modernize any home the glass garage doors not only transform garages; it can also be used as an interior loft partition or a versatile patio door to seamlessly merge indoor and outdoor living spaces. At the press of a button, the garage doors are automatically raised, allowing traffic to flow during gatherings. Closed, they create an attractive wall of windows, adding a panoramic view to any living space. Many window options are available to control the degree of light transmission and privacy. Insulated glass is also available for increased energy efficiency.







Aluminum Color Options

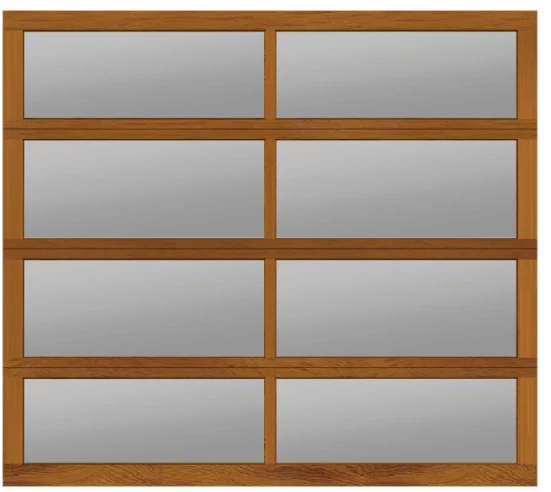

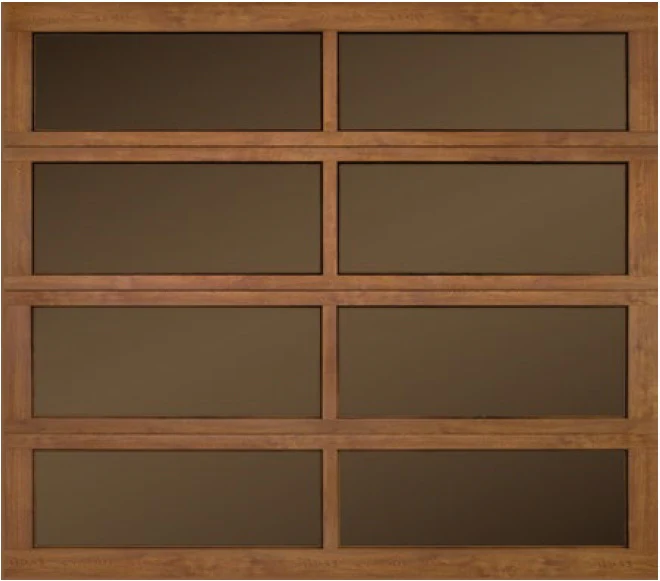

Choose between 4 different woodgrain options that cover the most popular trends in wood accents for construction. All four colors will feature black retaining strips around the glazing. Light Cherry – A warm, light finish on Cherry woodgrain Harvest Oak – A medium brown finish featuring classic Oak woodgrain American Walnut – A dark brown finish on Walnut woodgrain Black Onyx – A deep black finish combining modern style with classic woodgrain

 Specifications:

1. Frame Thickness: 2-1/8" Rust-proof Aluminum Frame
2. Glass Thickness: 1/8" Single Pane, 1/4" Dual Pane Clear Tempered (Non-Insulated), 1/2" Dual Pane Tempered Clear Insulated Glass
3. Glass Options: Thirteen window options for varying degrees of light transmission/privacy or solid aluminum panels for total privacy/protection
4. Custom Capabilities: Size, Finish, Glass
5. Maintenance Level: Low
6. Packaging: Loose
7. Project Type: New construction and replacement

Track and Hardware Details:

1. Spring Type: Torsion, Oil Spring
2. Track Size: 2" Flag & Jamb Bracket Jambs
3. Track Mount: Bracket
4. Track Lift: Standard (High Lift or Low-Lift available for additional cost)
5. Track Radius: 12" or 15”
6. Packaging: Loose
7. Rollers: Heavy-duty steel ball bearing rollers with nylon tires provide quiet operation
8. No lock hole

- Product Brochure
